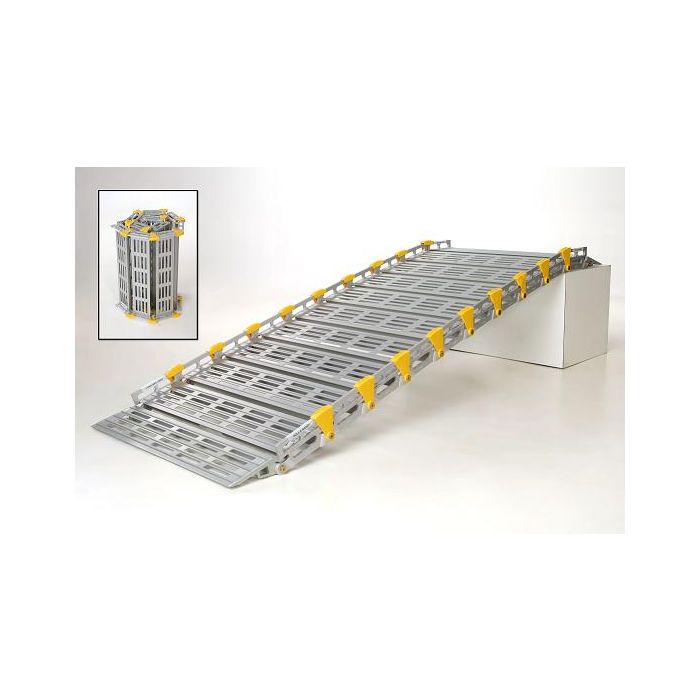

Roll-A-Ramp easily configures for permanent or semipermanent mounting to landings, thresholds, or vans. It's so light, so strong, so easy to use, and so convenient that wheelchair users and their caregivers will marvel at its simple design as they enjoy newfound freedom.
Ramps are manufactured in widths of 12", 26", 30" & 36"
Please remember to "think outside the box" when working with Roll-A-Ramp®; not with traditional rigid specifications dictating you fit the situation to the available size. They are not standard sizes as with other ramps. Your are not limited by length or configuration constraints. We build the ramps based on what size you need.
In every case, the Roll-A-Ramp® remains a portable system regardless of the configuration, and there is never any structure modifications needed to install a Roll-A-Ramp®. It can be easily removed or reconfigured.
Roll-A-Ramp may be rolled up or folded for vehicle mounted applications. We simply tighten the union joints. Holds up for years and years under any conditions. After all, the US NAVY uses it!
Four Widths for Multiple Applications
30-inch, 26-inch & 36" single wide units, or 12" inch pair system with optional spacers to accommodate any wheelchair.
Ramps are built to ANY length, so you get what you NEED not what's AVAILABLE.
Portable Each lightweight section rolls up or folds quickly. Includes strap/handle for easy transport and storage.
Strong Supports 1000-2000 lbs! Made of revolutionary new high-tensile strength anodized aerospace aluminum.
Lightweight Each standard 12-inch x 8-foot section weighs only 26 lbs.
Adjustable Length Additional links can be added with simple tools provided.
Durable Designed and built for years of rugged use.
Safe Built-in safety rails ensure user safety.
Smooth on and off Each end slopes gradually for easy, jar-free access.
Versatile Easily separate smaller sections from a long modular system for use as a portable ramp. Multiple ramps in one!
Allows access to your vehicle and can transfer to an entry ramp for your house in minutes.
Light weight with incredible load rating, up to 1 ton.
Conveniently stores in most cars and vans. Rolls up for easy storage and transport. Converts from a roll up ramp to a folding ramp.
Engineered for a smooth entry and exit with all wheelchair styles.
Go from vehicle to home to friends with ease. We believe that without access you are not truly mobile.
10 Year Unconditional Warranty
40% more strength than competitive ramps and weighs up to 25% less.
You can extend the length with simple tools. Your ramp is not obsolete if your needs change.
Ramps are manufactured & shipped in any length needed in widths of 12", 26", 30"
RAMP PLACEMENT METHODS (3 ways) FOR YOUR ROLL-A-RAMP® There are three options for how you position the upper ramp at the landing.
All ramps are shipped ready to set up for Standard Ramp Placement shown in example #1. Ramps are designed to be securely setup without the need for brackets or anchoring the ramp. Mount brackets are available.
Your situation may require one of the alternative ramp placement options below. No two situations are alike.
NOTE: No attachment brackets or anchoring is required for Roll-A-Ramp® .
Placement #1—STANDARD APPROACH PLATE Placement (included on all This is how the ramp is placed using the Standard Approach included with all ramps, unless a different method is chosen. End piece plus the first ramp link on landing—(12” total).
Placement #2—HEAVY DUTY APPROACH Placement (optional) Widths options: #3226 (26” / #3235 (30”) / #3236 (36”) / #3248 (48”) This end piece only rests on the landing vs. a ramp link in additional, i.e. #1 above. A smoother more flush transition onto and off of the ramp for a smoother wheelchair experience, or for hand dollies, flight cases, carts, etc. Also used for hand trucks, flight cases, freight carts *Or when 12” of landing space is not possible

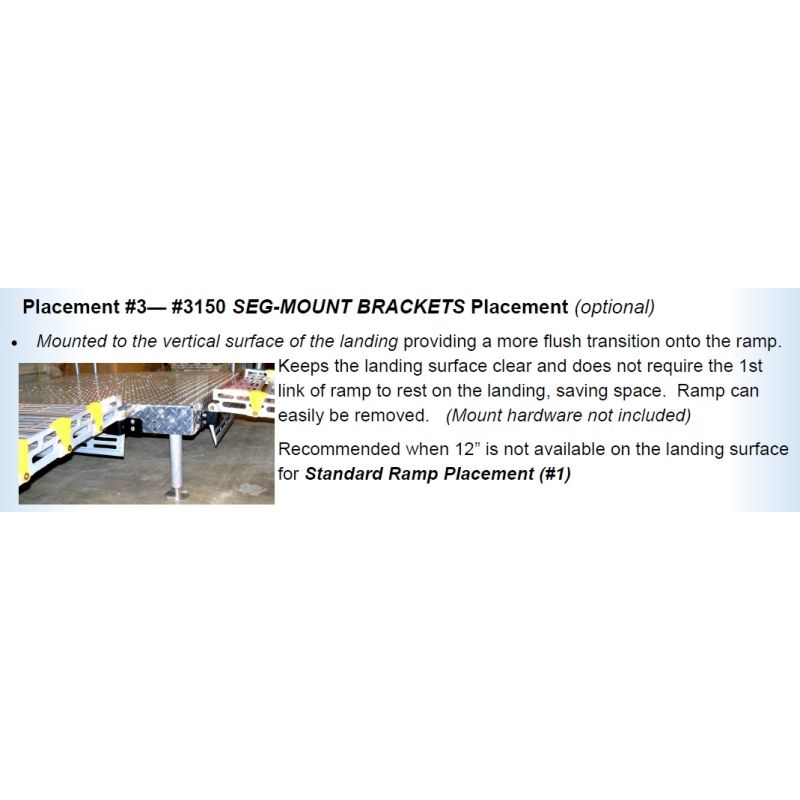

Placement #3— #3150 SEG-MOUNT BRACKETS Placement (optional) Mounted to the vertical surface of the landing providing a more flush transition onto the ramp. Keeps the landing surface clear and does not require the 1st link of ramp to rest on the landing, saving space. Ramp can easily be removed. (Mounting hardware not included) Recommended when 12” is not available on the landing surface for Standard Ramp Placement (#1)
Details and Specifications for the Roll A Ramp
12" Roll-A-Ramp® twin track pair Lengths start at 3 ft. and can be configured to any length needed.
Part #
Load Bearing Length
Overall Length *
12" RAMPS
Load Capacity
Weight
Rolled
Diameter
#A11202A19
2 ft.
3 ft.
12" width
2000 lbs/pair
10 lbs.
#A11203A19
3 ft.
4 ft.
12" width
2000 lbs/pair
12 lbs.
12"
#A11204A19
4 ft.
5 ft.
12" width
2000 lbs/pair
14 lbs.
14"
#A11205A19
5 ft.
6 ft.
12" width
2000 lbs/pair
19 lbs.
16"
#A11206A19
6 ft.
7 ft.
12" width
2000 lbs/pair
21 lbs.
18"
#A11207A19
7 ft.
8 ft.
12" width
2000 lbs/pair
25 lbs.
20"
#A11208A19
8 ft.
9 ft.
12" width
2000 lbs/pair
26 lbs.
22"
#A11209A19
9 ft.
10 ft.
12" width
1750 lbs/pair
32 lbs.
24"
#A11210A19
10 ft.
11 ft.
12" width
1600 lbs/pair
36 lbs.
26"
#A11211A19
11 ft.
12 ft.
12" width
1450 lbs/pair
40 lbs.
28"
#A11212A19
12 ft.
13 ft.
12" width
1325 lbs/pair
45 lbs.
30"
26" wide single Roll-A-Ramp® Lengths start at 3 ft. and can be configured to any length needed.
Part #
Load Bearing Length
Overall Length *
26" RAMPS
Load Capacity
Weight
Rolled
Diameter
#A12602A19
2 ft.
3 ft.
26" width
1000 lbs.
15 lbs.
#A12603A19
3 ft.
4 ft.
26" width
1000 lbs.
21 lbs.
12"
#A12604A19
4 ft.
5 ft.
26" width
1000 lbs.
26 lbs.
14"
#A12605A19
5 ft.
6 ft.
26" width
1000 lbs.
31 lbs.
16"
#A12606A19
6 ft.
7 ft.
26" width
1000 lbs.
36 lbs.
18"
#A12607A19
7 ft.
8 ft.
26" width
1000 lbs.
41 lbs.
20"
#A12608A19
8 ft.
9 ft.
26 width
1000 lbs.
45 lbs.
22"
#A12609A19
9 ft.
10 ft.
26" width
875 lbs.
51 lbs.
24"
#A12610A19
10 ft.
11 ft.
26" width
800 lbs.
56 lbs.
26"
#A12611A19
11 ft.
12 ft.
26" width
725 lbs.
61 lbs.
28"
#A12612A19
12 ft
13 ft.
26" width
650 lbs.
66 lbs.
30"
30" wide single Roll-A-Ramp® Lengths start at 3 ft. and can be configured to any length needed.
