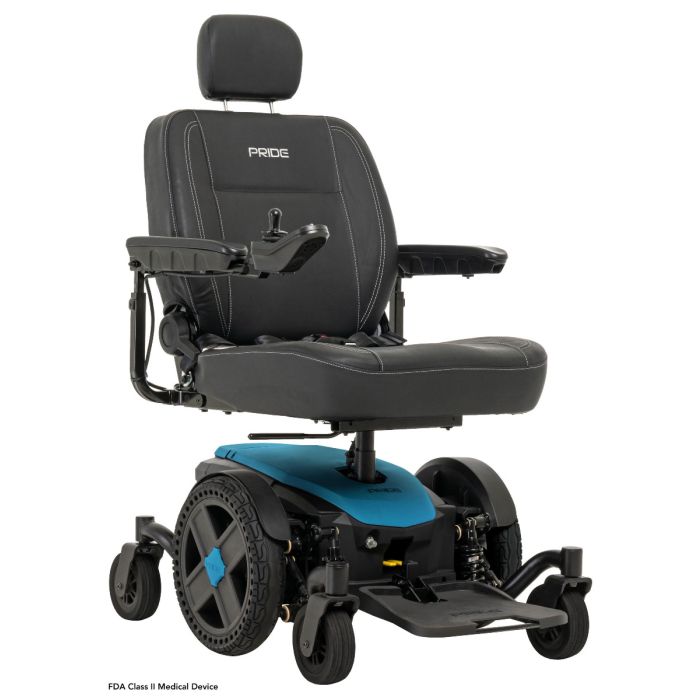

Pride Jazzy EVO 614

The Jazzy EVO 614 with 13.75-inch center drive wheels, a 3” ground clearance and new top speed of 4.4 mph, it’s built for crossing the threshold for indoor and outdoor use.

FDA Class II Medical Device*

In stock

Manufacturer: Pride Mobility
Model: EVO 614
MSRP $6,199.00

$3,769.00

Price as configured

SIMILAR MODELS

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Pride Jazzy Elite 14
MSRP $5,999.00

$3,769.00

Price as configured
Jazzy 600 ES
MSRP $5,999.00

$3,739.00

Price as configured
P326A Vision Sport in Blue
MSRP $7,637.00

$2,866.00

Price as configured
Pride GoChair - Blue
MSRP $2,429.00

$1,699.00

Price as configured

The Jazzy® EVO 614 is your ultimate mobility alternative. With new 13.75-inch center drive wheels, a 3” ground clearance and new top speed of 4.4 mph, it’s built for crossing the threshold for indoor and outdoor use. At just 22 inches, Jazzy® EVO 614’s turning radius comes in under two feet, which means your power wheelchair more easily navigates tight turns indoors and in your favorite shops and restaurants.

When we imagined the Jazzy® EVO 614 power wheelchair, we thought about all the opportunities that come only once. Your grandchild only graduates from high school once. You might only ever get one chance to take an Alaskan cruise with your high school friends. Your favorite play is showing for one weekend only at the local theater. Life is filled with important moments that are special. The Jazzy® EVO 614 power chair ensures you never miss an instant. Embrace new possibilities.

Comfort and convenience with the Jazzy EVO Series

Adjust your seat depth, swivel, recline and set the armrests to the ideal position. Choose from three available seat sizes in 16-inch, 18-inch, and 20-inch widths with memory foam.

   Jazzy Evo 614 Series Features:

  • 300 lb. weight capacity
  • Base width of only 25.4"
  • Maximum speed up to 4.4 mph
  • 3" Ground clearance
  • 13" solid drive tires
  • Up to 19 miles at 300 lbs. / Up to 21.5 miles at 200 lbs.
  • Mid-wheel 6® Technology offers tight turning radius around doorways and corners
  • Pride's patented Active-Trac (ATX) Suspension ensures a smooth ride experience over uneven surfaces
  • Memory foam high-back seat with single seat post allows the user to swivel
  • Available depth-adjustable seat sizes: 16" W x16"-18" D, 18" W x 18"-20" D, 20" W x 18"-20"
  • Height, width, and angle adjustable armrests
  • Flip-up, height, angle, and depth adjustable foot platform
  • Removable matte-finish color-through shrouds



Details and Specifications for the Pride Jazzy EVO 614

CATEGORY SPECIFICATION
Model
Jazzy® EVO 614
Weight Capacity 300 lbs.
Turning Radius3 22"
Width3 25.4"
Length3 40.5"
Maximum Speed2 Up to 4.4 mph
Ground Clearance3 3"
Front Casters3 6"
Drive Wheels3 13.75" perforated
Rear Casters3 6"
Drivetrain Two in-line HD motors
Braking System Regenerative and electro-mechanical
Suspension Type Full independent front and rear Active-Trac® (ATX) Suspension
High-back Seat Sizes3 16"x16"-18", 18"x18"-20", 20"x18-"-20"
Seat-to-Floor Range3 22"-24"
Per Charge Range2,5 Up to 19 miles at 300 lbs.
Up to 21.5 miles at 200 lbs.
Standard Electronics 60A, Dynamic Linx
Component Weights6 Base: 125.7 lbs.
Seat: 57.8 lbs.
Batteries: (2) 36 lbs. each;
Total Weight7 255.5 lbs.
Battery Requirements4 (2) NF-22
Battery Charger 5-amp, off-board
HCPCS Code Group 2: Standard (K0822/K0823)
Warranty Frame: 5-year limited; Drivetrain: 13-month limited; Electronics: 13-month limited; Batteries: 13-month limited
Colors Black (matte), White (matte), Red (matte), Iceberg Blue (matte), Robin's Egg Blue (matte), Sugar Plum (matte)

Notes:
1Jazzy® Power Chairs are FDA Class II Medical Devices designed to aid individuals with mobility impairments.
2Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+10%, -5%).
3Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or - 3%).
4AGM or gel cell type required.
5Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
6Battery weight may vary based on manufacturer.
7Total weight includes base, seat and batteries.

HCPCS codes provided should not be considered as legal advice and do not guarantee reimbursement. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement

The information contained herein is correct at time of publication; we reserve the right to alter specifications without prior notice.

NOTE: All specifications subject to change without notice. The information contained herein is correct at the time of publication, we reserve the right to alter specifications without prior notice.
Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or 3-%.
Special order seats or non-standard dimensions will not be fold-flat and depth-adjustable.

Manual and Videos for the Pride Jazzy EVO 614

Owners Manual: Owners Manual Link

Brochure: Brochure Link

Warranty for the Pride Jazzy EVO 614

  • In-Home Labor: 1 Year
  • Frame: 5-year limited
  • Drivetrain: 13-month limited
  • Electronics: 13-month limited
  • Batteries: 13-month limited (SLA); 3-year limited (Lithium)
