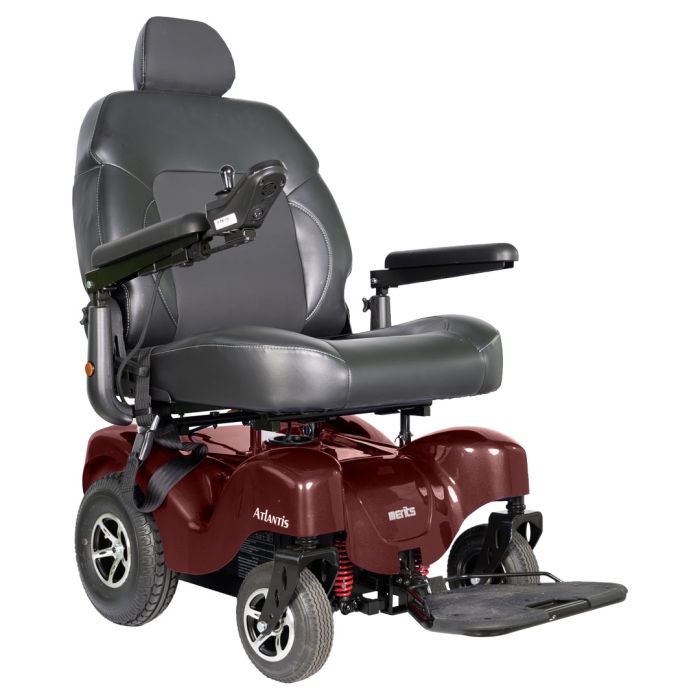

The Atlantis Heavy Duty Power Chair by Merits Health gives you the durability and comfort of a standard power chair with the added benefits of heavy-duty construction and design. With a 31.5-inch turning radius, 12-inch drive wheels, and a high-powered motor, the Atlantis Heavy Duty Power Chair will get you where you need to go with ease.
Weight Capacity 600 lbs.
Heavy-duty power wheelchair with a unique and prominent design
Four seat posts provide a more stable and durable structure for the frame
Available with a pan or captain seat in 24 or 26-inch width
Extra-wide seat and extra-high back provide great comfort for bariatric users
Super high power in-line motors help riders negotiate 10° uphill ramps easily
Details and Specifications for the Merits P710 Heavy Duty RWD Powerbase Wheelchair
Product
#
P710
Weight Capacity
600 lbs
Drivetrain
RWD
Seat Type
Captain or Pan
Seat Width
24"
Seat Depth
22”
Backrest Height
24"
Seat-to-Floor Height
23" - 24"
Elevating Seat
n/a
Overall Length
44"
Overall Width
27"
Overall Height
50"
Turning Radius
31.5"
Ground Clearance
3"
Total Weight
304 lbs
Wt of Heaviest Pc
167 lbs
Max Speed
5 mph
Per Charge Range
up to 32 miles
Motor
DC 24V, 300W
Controller
P&G VR2 60A
Battery Size (2)
12V/Group 24 (75AH)
Charger
6A off-board
Gradient
10 °
Front Wheels
9" pneumatic
Drive Wheels
12" pneumatic
Rear Wheels
3" anti-tippers
Manual and Videos for the Merits P710 Heavy Duty RWD Powerbase Wheelchair
Warranty for the Merits P710 Heavy Duty RWD Powerbase Wheelchair
18 Month limited parts warranty on electronic controller and drive train component Six Month Battery Warranty
