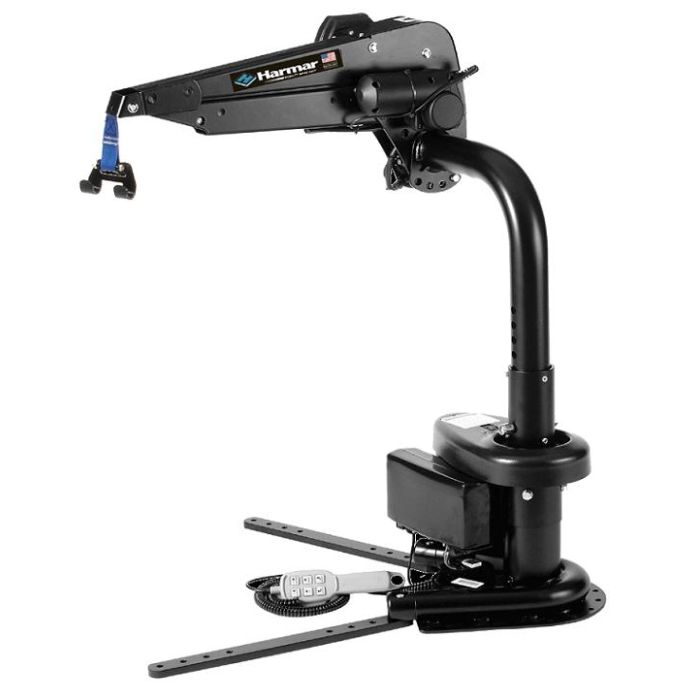

Harmar AL435 Axis III Inside Lift

In stock

Manufacturer: Harmar
Model: AL435
MSRP $4,985.00

$3,930.00

Price as configured

SIMILAR MODELS

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Harmar AL560
MSRP $3,115.00

$2,540.00

Price as configured
Harmar AL225 Axis II Lite
MSRP $3,560.00

$2,815.00

Price as configured
Harmar AL425
MSRP $4,135.00

$3,270.00

Price as configured
Harmar AL100
MSRP $2,835.00

$2,225.00

Price as configured

Call (800) 987-6791
For Over the Phone "Exclusive" Offers

The AL435 adds a powered boom with 12” of additional reach required to clear the rear bumper of larger vehicles, as well as handle the largest possible power chair or scooter into the smallest vehicle openings.

The AL435 offers the ergonomic hand control and two wireless key fobs.
More versatile and flexible than any other inside van and pick-up truck lift on the market today. Adapts to most mini-vans, full sized vans, SUV’s and pick-up trucks. Fits other specialty vehicles such as the Chrysler PT Cruiser.

  • Provides 200˚ of rotation to position your scooter or power wheelchair on the sidewalk next to your vehicle
  • Manual rotation release in case of power failure
  • Adjustable arm angle that folds for additional storage
  • Powered boom
  • Can be used on vehicles with tailgates
  • The offset arm provides clearance around the vehicle opening
  • Adjustable limit switches assure accurate, dependable swing control
  • Backup mechanical stops prevent rotation over-travel
  • Attractive, durable black & metallic gray powder coated finish

Call (800) 987-6791
To Speak with a Mobility Specialist Now!

Details and Specifications for the Harmar AL435 Axis III Inside Lift

  • Maximum Lifting Capacity 400 lbs.
  • Installed Weight 76 lbs.
  • Maximum Lifting Height 39" at Horizontal Boom Position
  • Minimum Lifting Height 31" at Horizontal Boom Position
  • Range of Boom Adjustment Powered from 21" -31.8"
  • Arm Angle Adjustment 5 Degree Increments from Horizontal to 35+
  • Column Rotation 180 Degree Adj. at +/- 20 Degree Increments
  • Base Leg Adjustment 180 Degree Total Adjustment

Manual and Videos for the Harmar AL435 Axis III Inside Lift

Brochure: Brochure Link

Warranty for the Harmar AL435 Axis III Inside Lift

3 Year Transferrable Parts Warranty
