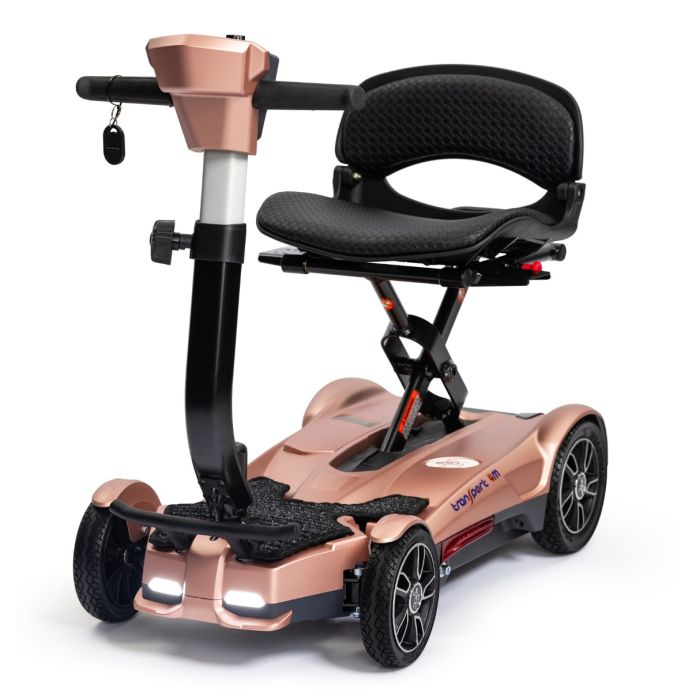

EV Rider TranSport 4M - Manual Fold

The EV Rider Transport 4M wheel travel scooter folds manually in seconds.  Take it wherever you go.

In stock

Manufacturer: EV Rider
Model: S21FM
MSRP $2,599.00

$1,999.00

Price as configured

SIMILAR MODELS

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Transport Plus
MSRP $2,599.00

$1,695.00

Price as configured
GB120
MSRP $2,649.00

$2,080.00

Price as configured
Pride i-Go in Arctic Ice
MSRP $3,649.00

$2,439.00

Price as configured
Go Go Carbon
MSRP $4,789.00

$3,199.00

Price as configured

The Transport 4M scooter is very compact for travel and you can manually fold into an even more compact size in just a few seconds. Take this scooter with you on planes, cruise ships.

  • Compact with Added stability due to its 4 wheel design
  • Two-tone rims
  • Automatic LED lights controlled by lighting sensor
  • Electronic Key
  • Digital Display
  • Adjustable Tiller Height

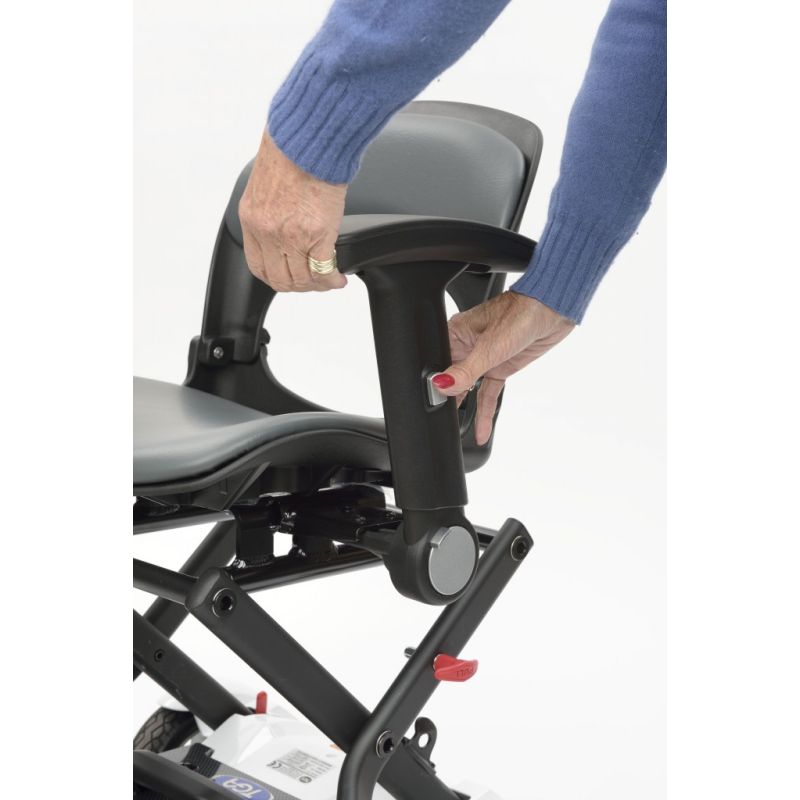

  • Optrional armrests flip-up and are height adjustable
  • Folds manually in seconds
  • Front steering sensor reduces speed when making turns for added safety
  • Maximum speed of 3.7 mph
  • Total weight of 55 lbs with battery and armrests included
  • Airline approved lithium battery
  • Measurements: Folded size: 32.6" x 18" x 15.75"; unfolded size: 33" x 18" x 33.5"
  • 250 pound capacity

Details and Specifications for the EV Rider TranSport 4M - Manual Fold

Model
Transport 4M (S21FM)
Overall Length 33.5”in
Overall Width 23” in
Overall Height (at Maximum Tiller Height) 33.5”in
Overall Height - at Minimum Tiller Height 30” in
Legroom - Floorboard Length x Width 17" in
Deck Height - Floorboard to Floor 5.9" in
Ground Clearance 1.4"
Turning Radius 39.3” in
Speed - Maximum up to 3.7 mph
Total Weight 55 lbs
Weight without Batteries 51.8 lbs
Seat Type Folding Mobility Seat
Seat - Width & Depth & Height 15" W x 12" D x 9"H
Seat - Cushion Thickness 1" in
Seat Height - Cushion to Deck 15" in
Seat Height - Cushion to Floor 19.7" in
Tire Type Solid Tires
Rim Type Rear Industrial Plastic
Rim Type Front Industrial Plastic
OEM Spec Rear N/A
Outside Diameter Rear 7.9"
Tire Width Rear 2"
OEM Spec Front N/A
Outside Diameter Front 7.08” in
Tire Width Front 1.57” in
Battery Type & Power 24V 10.05Ah Lithium Ion x1 (included)
Brake System Electromagnetic
Climbing Angle - Maximum Recommended 3 degree
Charger Type Off Board Li-Ion Charger 2 Amp 24 VDC, input: 100/240 Vac
Charging Time 4 - 6 hrs
Controller Dynamic R‐Series 50A
*Driving Range Up to 6.8 miles
Load Capacity 250 lbs
Motor & Drive Location 180 watt 24 volt
Colors Blue, Silver, Rose Gold, Red
Tiller Type T-Shape Type
Throttle Control Type Pot Meter
Anti-Tipper Wheels-Rear Rear Casters - Standard

Manual and Videos for the EV Rider TranSport 4M - Manual Fold

Brochure: Brochure Link

Warranty for the EV Rider TranSport 4M - Manual Fold

Warranty by EV Rider, LLC

ONE-YEAR LIMITED WARRANTY
One (1) year from the date of purchase, if any part or electronic component of the Scooter is found upon examination to be defective in material and/or workmanship, it will be repaired or replaced, at EV Rider, LLC’s option, without charge.
Labor charges are NOT included. The purchaser is responsible for the delivery to the authorized repair facility. Satisfactory proof of purchase, serial number and the date of purchase are always required.

ONE-YEAR WARRANTY EXCEPTIONS
Motor: In cases where there is an increase in the operational noise level, the warranty does not apply. (An increase in operational noise level usually occurs due to abusive and excessive strain on the scooter).
The batteries that are purchased separately or in addition to the batteries provided with the scooter are warranted by EV Rider for one year after the purchase of the Unit with the exception of the Stand-N-Ride scooter.

Service: Warranty service can be performed by EV Rider, LLC or by an authorized EV Rider, LLC service facility. Do not return faulty parts to EV Rider, LLC without prior consent. A request for a Return Authorization is required prior to returning items. All transportation costs and shipping damage incurred while submitting units and/or parts for repair or replacement are the responsibility of the original purchaser. In the event replacement parts are sent to a customer or dealer, EV Rider may require any damaged or defective parts to be returned to EV Rider. Parts not returned to EV Rider will be billed to the customer.

WARRANTY EXCLUSIONS: This warranty is only given to the original purchaser of the Scooter. This Warranty excludes:

  • Batteries that are provided free with the scooter. See the EV Rider invoice/packing slip for additional detail.
  • Consumable items which may need replacing due to normal wear and tear (tires, tubes, belts, bulbs, upholstery and seating, motor brushes, fuses, plastic shrouds and footrest covers, etc.)
  • Damaged caused by: battery fluid spillage or leakage, abuse, misuse, accident, or negligence, improper operation, excessive loading, maintenance, or storage, commercial use or use other than normal.
  • Used other than for the purpose of the purchaser’s mobility.
  • Repairs and/or modifications made to any part of the scooter without specific and prior consent from EV Rider, LLC.
  • Labor, service calls, shipping, and other charges incurred for repair of the product not approved by EV Rider, LLC.

Batteries: Batteries carry a limited warranty which is subject to a stringent wear and tear clause. Any battery faults due to a defect in the original manufacture will normally become obvious within the first two months of use. Any gradual deterioration in performance after this period is normally associated with fair wear and tear, misuse or accidental damage and as such is not covered by the manufacturer’s warranty. There is no other express warranty.

Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of the original purchase and to the extent permitted by law. Any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.
